| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Wall Mount Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCEW | Color: | Black,Grey |
| Loading Capacity: | 30kg | ||
| High Light: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html

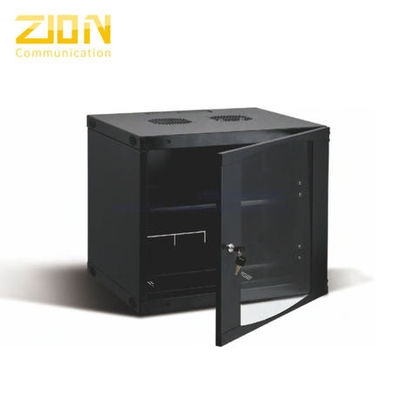

| EW Wall Box | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Materials: | |
||||||||
| · SPCC Cold Rolled Steel; | |||||||||
| · Thickness: Mounting profile: 2.0mm; | |||||||||
| · others: 1.0mm. | |||||||||
| Colour: | |||||||||
| · ZCEW.■■■■0■■: RAL7035 | |||||||||
| · ZCEW.■■■■1■■: RAL7021 | |||||||||
| Loading Capacity: | |||||||||
| · Static loading: 30KG. | |||||||||
| Finish: | |||||||||
| · Pretreated steel coated with textured, polyester powder paint | |||||||||
|
COMPLIANCE (Reference Standard) · Comply with ANSI/EIA RS-310-D · IEC60297-2 · DIN41494;PART1; DIN41494;PART7. |
|
||||||||
| Feature | |||||||||
|
· Knocked down and smaller packaging, easy to transport and carry. · Cable entry on both of top cover and bottom panel. · Front and rear frame of the specially-made structure, better stability. · Using 13 screw set to assembly the whole cabinet, it spends only 10mins by one person to operate. · It has a pilot pin to help close the front door to avoid mismatch and the front door can be changed to another way to open. · The cable can be entered from the top, bottom, back of the cabinet, suitable to every situation. The incoming cable hole patented, it can be adjusted and has the round edge to avoid the cutting to the cable. · Side panel can be opened in a rotated way or disassembling, having space enough to wiring, the the side panel can be locked safely from inside without the locker and key. · Maximum bearing capacity: 30KG. |
||||||||
| May Installs The Fitting | |||||||||
|
|||||||||
|
Definition Of Cord |
|||||||||
|
|||||||||
|
Main Part |
|||||||||
| S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
| 1 | Back frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 2 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 3 | Top cover | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 4 | Front door | 1 | 4MM toughed glass door/SPCC t1.0 |
Powder coated | Small lock | ||||
| 5 | 19"rails frame | 1 | SPCC t2.0 | Powder coated | ····· | ||||
| 6 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | ||||
| Order Information: | |||||||||
| Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H)(mm) | Disassembled packing dimension(MM) |
Assembled packing dimension(MM) |
|||
| ZCEW.5406.EWSC | 6 | 540 | 450 | 327 | 570*215*485 | 550*460*340 | |||
| ZCEW.5606.EWSC | 600 | 570*165*635 | 550*610*340 | ||||||
| ZCEW.5409.EWSC | 9 | 540 | 450 | 460 | 500*215*590 | 550*460*470 | |||
| ZCEW.5609.EWSC | 600 | 590*205*615 | 550*610*470 | ||||||
| ZCEW.5412.EWSC | 12 | 540 | 450 | 593 | 570*205*655 | 550*460*605 | |||
| ZCEW.5612.EWSC | 600 | 590*205*635 | 550*610*605 | ||||||
| ZCEW.5415.EWSC | 15 | 540 | 450 | 725 | 570*205*790 | 550*460*740 | |||
| ZCEW.5615.EWSC | 600 | 630*205*745 | 550*610*740 | ||||||
|
|
|||||||||
| Main Structure | |||||||||
|
|||||||||
