Detail Information

Conductor:	Bare Copper,(1/0.8mm)	Insulation:	Polyethylene (PE)
Fillers:	Cotton Thread	Overall Tape:	Polyester
Drain Wire:	Tinned Copper (7/0.16mm)	Overall Screen:	Overall Aluminium Foil (100% Coverage)
Sheath Material:	Low Smoke Halogen Free (LSHF)
Highlight:	LSHF Knx Cable , 0.8mm Knx Cable , 2 Pair Knx Cable

Product Description

2 Pair 0.8mm LSHF KNX Control Cable

Professional POWER & CONTROL CABLE designed for KNX building automation systems.

View Power and Control Cables Catalog

Product Specifications (KNX2P08)

Cable Construction

Conductor Material	Bare Copper (1/0.8mm)
Pairs Insulation Material	Polyethylene (PE)
Number of Pairs	2
Fillers	Cotton Thread
Overall Tape	Polyester
Drain Wire	Tinned Copper (7/0.16mm)
Overall Screen	Overall Aluminium Foil (100% Coverage)
Sheath Material	Low Smoke Halogen Free (LSHF)
Sheath Colour	Green
Core Identification	Red & Black, Yellow & White

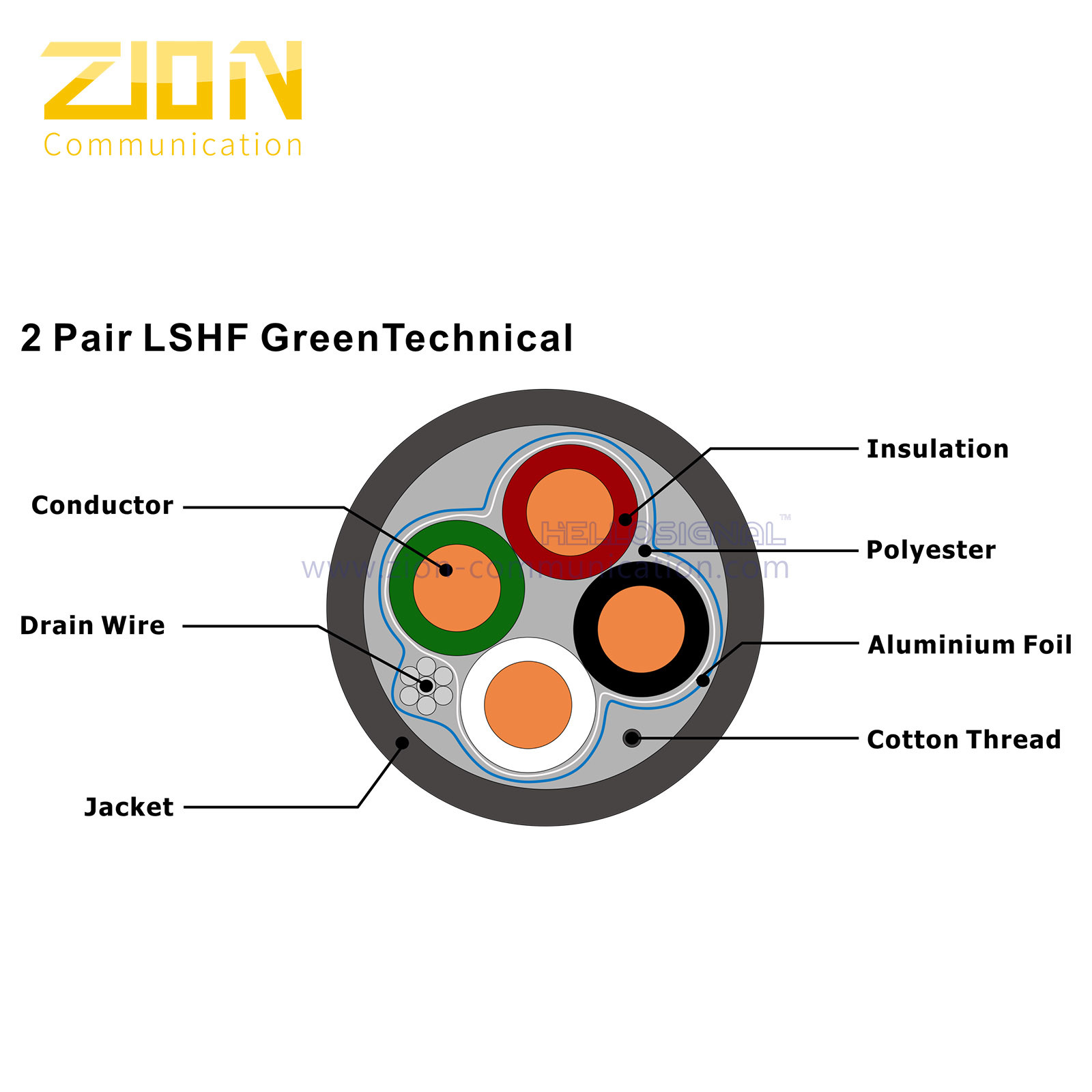

Cross Section

Application Support

Ideal for comprehensive building automation systems including:

Lighting control systems
Blind and shutter control
Air-conditioning and HVAC systems
Heating and climate control
Security and access control systems

KNX Certified products ensure seamless communication between devices, providing reliable system functionality, easy expansion capabilities, and creating comfortable, efficient, and safe environments.

Electrical Characteristics

Nominal Conductor Resistance	< 38.5 Ω/km
Insulation Resistance	> 200MΩ.M
Voltage Rating	450/750V (Applies to CE marked FS C branded stock only)
Test Voltage	2.5kV for 5 minutes

Physical Characteristics

Overall Diameter	6.8 ± 0.2mm
Minimum Bend Radius	10 x OD
Temperature Rating	-10°C to +70°C
Weight	62 kg/km

Compliance Standards

Flame Retardant	BS EN 60332-1-2
Low Smoke Generation	BS EN 61034-2
Halogen Gas Emission	BS EN 60754-1&2
RoHS3 Compliant	Yes
CE Compliant	LVD (2014/35/EU), CPR (305/2011)
CPR Classification	Eca (EN50575:2014+A1:2016)

Order Information

Marking	HELLOSIGNAL NO.KNX2P08 KNX CABLE LSZH 001-300M
Inner Package	300M/Wooden Spool
Outer Package	Color Box, Pallet (or per customer's request)
Delivery Time	Normally 25 days after receiving deposit
Brand	HELLOSIGNAL® OR OEM

Online Service & Support

Skype: kingtone3

Wechat: king-tone

Whatsapp: +86 18268009191

Email: info@zion-communication.com

Tag:

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL
Model Number:	Flexible Control Cable

Minimum Order Quantity:	10 KM
Packaging Details:	500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

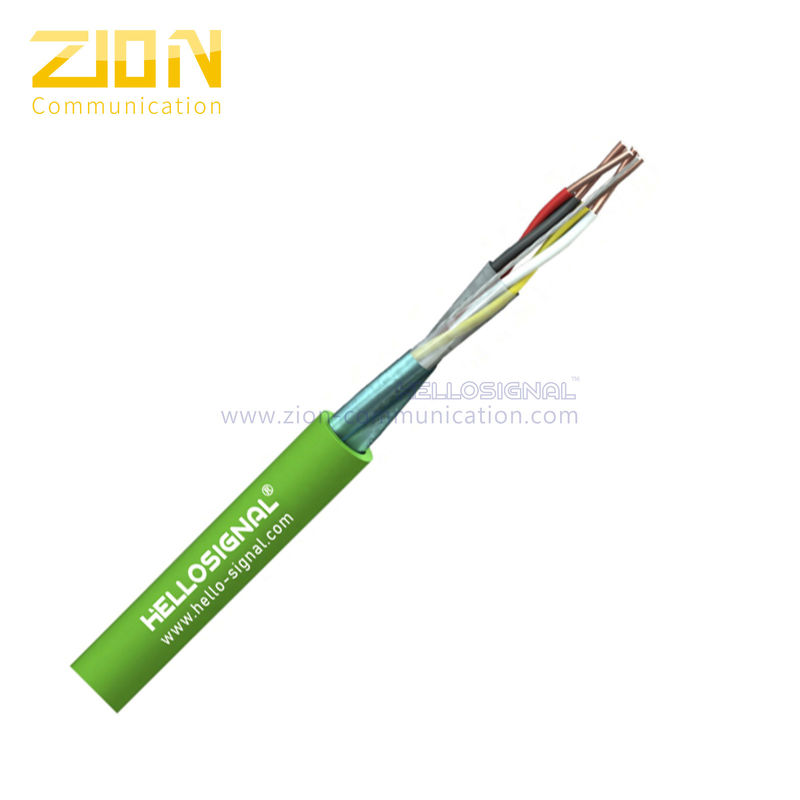

2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
