| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Flexible Control Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 100M/Reel, 300M/Wooden Spool |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Finely Stranded Bare Copper | Insulation: | PVC |
|---|---|---|---|
| Shielding: | Shielding: Gray PVC Inner Jacket; Tinned Copper Braid (85% Coverage) | Jacket: | PVC; Transparent |
| Color: | Black | ||
| Highlight: | power control cable,control cable and power cable |
||

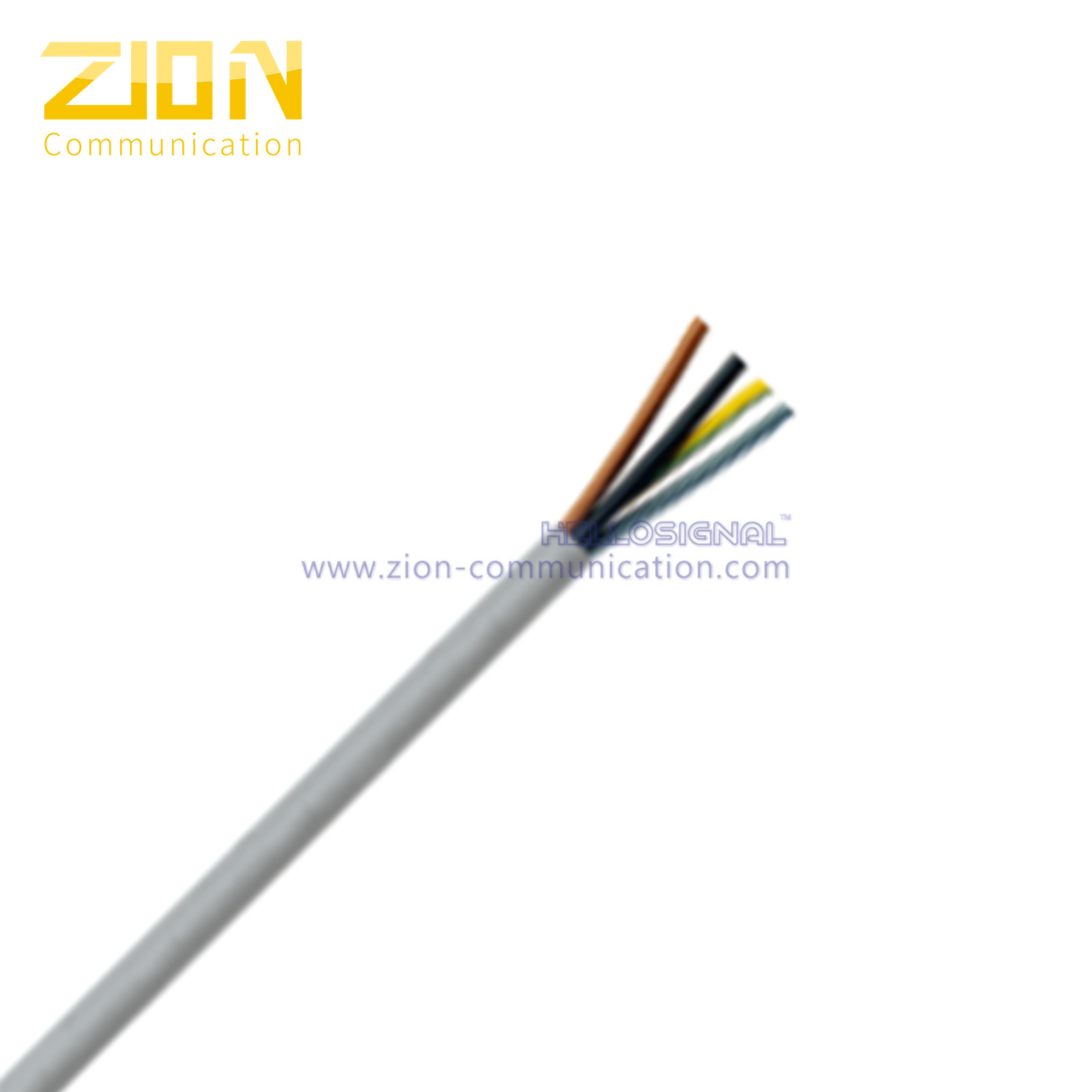

Classic 100/100 CY Power And Control Cable With Gray Color Pvc Jacket
https://www.zion-communication.com/Power-and-Control-Cables-products-catalog.html

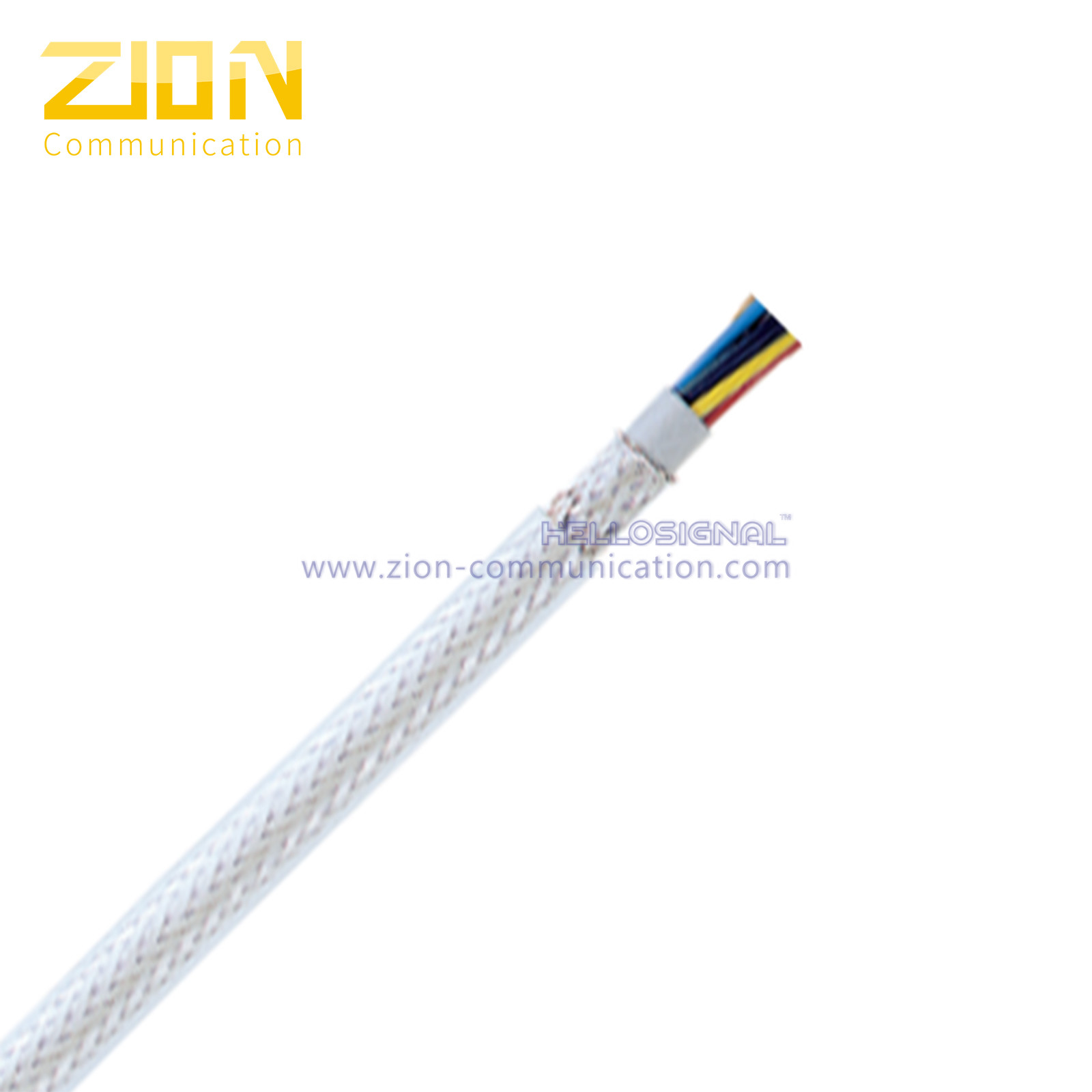

| HELLOSIGNAL CLASSIC 100 SY CLASSIC 100 SY | |||||||
 |
|||||||
| ▉ Application | |||||||
| HELLOSIGNAL® CLASSIC 100 SY is a color-coded multi-conductor power and control cable with a galvanized steel braided shield for mechanical and low frequency protection. It is for use in all electrical equipment in dry, damp, or wet conditions. It is a European-style cable conforming to CE. |
|||||||
| ▉ Recommended Applications | |||||||
| Control systems; assembly lines; control panels; data processing equipment; European machinery | |||||||
| ▉ Construction | |||||||
| Conductors: Finely stranded bare copper | |||||||
| Insulation: PVC | |||||||
| Shielding: Gray PVC inner jacket; galvanized steel braid (75% coverage) | |||||||
| Jacket: PVC; transparent | |||||||
| ▉ Application Advantage | |||||||
| • Available with inner jacket and steel braid for mechanical protection • Steel braid provides protection from low-frequency noise • Pressure-extruded jacket for improved flexibility |
|||||||
| ▉ Technical data | |||||||
| Minimum Bend Radius | for installation : 6 x cable diameter | ||||||
| Temperature Range | for flexible use : -5°C to +70°C |
||||||
| for stationary use : -40°C to +80°C | |||||||
| Nominal Voltage | ≤ 16 AWG : 300/500V | ||||||
| ≥ 14 AWG : 450/750V | |||||||
| Test Voltage | 4000V | ||||||
| Conductor Stranding | Class 5 fine wire | ||||||
| Color Code | VDE 0293-308: Chart 6, page 673 | ||||||
| Approvals | Based on VDE specifications | ||||||
| CE & RoHS | |||||||
| ▉ 100 SY Product List | |||||||
| Item No. | Number of Conductors |
Nominal Outer(in) | Copper.weight (lbs/mft) | Approx.weight (lbs/mft) | |||
| 18 AWG (1.00 mm²) | |||||||
| 7142300 | 3 | 0.346 | 19 | 103 | |||
| 7142301 | 4 | 0.374 | 26 | 121 | |||
| 7142302 | 5 | 0.398 | 32 | 136 | |||
| 16 AWG (1.50 mm²) | |||||||
| 7142305 | 3 | 0.382 | 29 | 128 | |||
| 7142306 | 4 | 0.402 | 39 | 146 | |||
| 7142307 | 5 | 0.437 | 48 | 180 | |||
| 14 AWG (2.50 mm²) | |||||||
| 7142310 | 3 | 0.496 | 48 | 187 | |||
| 7142311 | 4 | 0.547 | 65 | 228 | |||
| 7142312 | 5 | 0.598 | 81 | 267 | |||
| 12 AWG (4.00 mm²) | |||||||
| 7142315 | 2 | 0.535 | 52 | 221 | |||
| 7142316 | 4 | 0.618 | 103 | 307 | |||
| 7142317 | 5 | 0.673 | 129 | 366 | |||
| 10 AWG (6.00 mm²) | |||||||
| 7142320 | 3 | 0.622 | 116 | 365 | |||
| 7142321 | 4 | 0.677 | 155 | 461 | |||
| 7142322 | 5 | 0.740 | 194 | 536 | |||
| 8 AWG (10 mm²) | |||||||
| 7142325 | 4 | 0.838 | 258 | 677 | |||
| 7142326 | 5 | 0.917 | 323 | 803 | |||
| 6 AWG (16 mm²) | |||||||
| 7142330 | 4 | 0.949 | 413 | 929 | |||
| 4 AWG (25 mm²) | |||||||
| 7142331 | 4 | 1.157 | 645 | 1356 | |||
| 7142332 | 5 | 1.283 | 8.6 | 1654 | |||
| 2 AWG (35 mm²) | |||||||
| 7142335 | 4 | 1.276 | 903 | 1725 | |||
| ▉ Order Informations | |||||||
| Marking | HELLOSIGNAL CLASSIC 100 SY XXXFT/M | ||||||
| Package | 100M/Reel, 300M/Wooden Spool | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
