F / UTP Dual Jacket Network Patch Cable CAT 6A BC PE Twisted Pair Installation

Basic Information
Place of Origin: Hangzhou, China
Brand Name: hellosignal
Certification: UL, ETL, CE,CPR, RoHS
Model Number: F/FTP CAT6A
Packaging Details: pull box, wooden spool, carton, pallet
Delivery Time: Normally 25 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 30KM month
Detail Information
Number Of Conductors: 4 Type: CAT5/CAT5e/CAT6/CAT7
Jacket: PE Color: Blue/Red/Black/Grey
Conductor: Bare Copper Application: Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
High Light:

cctv camera cable

,

outdoor camera cable


Product Description

F/UTP Dual Jacket CAT 6A Twisted Pair Installation Cable
LAN CABLE
NO. 7112351

Construction
Conductor: 23 AWG Solid Bare Copper
Pairs: 4 Pairs
Insulation: 1.35 mm Skin-Foam-Skin
Insulation Colors: Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Rip Cord: Cotton
Drain Wire 0.40±0.005mm TC
Inner Jacket 6.2 ±0.2 mm PVC
Overall Shield Al/PET Foil,Foil face out
Out Jacket: 7.6±0.2 mm PE

Electrical Characteristics
Impedance 4 - 100MHz 100±15 Ohms
100 - 200MHz 100±22 Ohms
200 - 500MHz 100±32 Ohms
Max.Conductor DC
Resistance 20
8.4 Ohms/100m
Res. unbalance (%) Max. 2.5
Pair to Ground
Capacitance Unbalance
330 pF/100m
Transfer Impendance Max 10 mOhms/m @100Mhz
Installation temp. -30 - 50
Operation temp. -20 - 75

Cross Section
Application
• Suitable for structured premises cabling.
• For transmission of digital and analogue voice and data signals.
• Especially suitable for all Class EA applications.
• ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).
• Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).

Standard
IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801

Performance Characteristics
Frequency RL (Min.) Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT (Min.) PSNEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0 2.1 570.0 45.0 74.3 72.3 67.8 64.8
4 23.0 3.8 552.0 45.0 65.3 63.3 55.8 52.8
10 25.0 6.0 545.4 45.0 59.3 57.3 47.8 44.7
16 25.0 7.6 543.0 45.0 56.2 54.2 43.7 40.7
20 25.0 8.5 542.1 45.0 54.8 52.8 41.8 38.8
31.25 25.0 10.7 540.4 45.0 51.9 49.9 37.9 34.9
62.5 21.5 15.4 538.6 45.0 47.4 45.4 31.9 28.9
100 20.1 19.8 537.6 45.0 44.3 42.3 27.8 24.8
200 18.0 29.0 536.1 45.0 39.8 37.8 21.8 18.8
300 17.3 36.4 536.1 45.0 37.1 35.1 18.3 15.3
400 17.3 43.0 535.8 45.0 35.3 33.3 15.8 12.8
500 17.3 45.3 535.6 45.0 33.8 31.8 13.8 10.8
Note: The above transmission performance tor the 100M, 20±2 under the conditions tested.

Order Informations
Marking HELLOSIGNAL NO.7112351 F/UTP Dual Jacket CAT6A 4PR 23AWG
PE XXX (or Per customer's request)

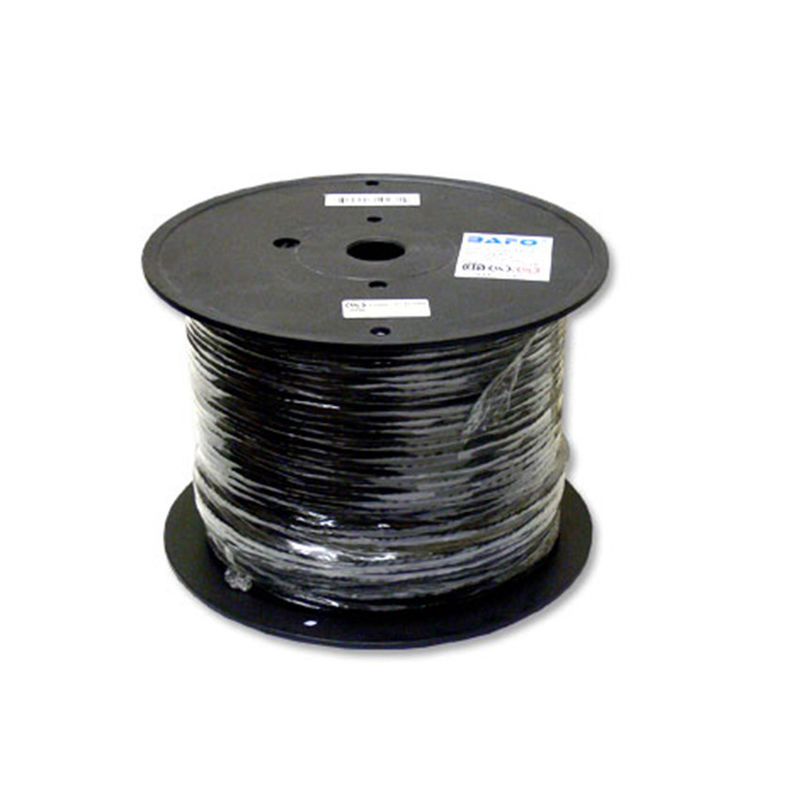

Inner Package 305m/Spool,305m/Reel (or Per customer's request)
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
