75 Ohm ETL CM RG59/U CCTV Coaxial Cable 20 AWG BC + 18 AWG CCA Power Siamese Cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO,UL,CE,RoHS
Model Number: RG59/U CCTV coaxial cable
Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 15 days
Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month
Detail Information
Conductor: Bare Copper Insulation: Foamed PE
Shield: CCA Braiding Jacket: PVC
Color: Black, White Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton
High Light:

hd coaxial cable

,

75 ohm coaxial cable


Product Description

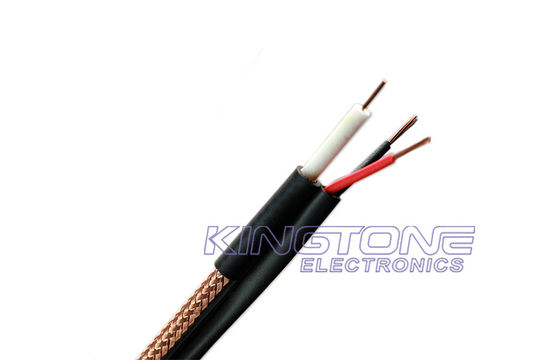

ETL CM RG59/U CCTV Coaxial Cable 20 AWG BC + 18 AWG CCA Power Siamese Cable



Visit our official website to learn more about CCTV Coaxial Cable

https://www.zion-communication.com/cctv-coaxial-cable-products-catalog.html





Quick Detail:



  • RG59/U CCTV Coaxial Cable
  • 7×0.0145"/0.37mm CCA Power
  • 20AWG BC Conductor
  • 95% CCA Braiding
  • 2C/18AWG CCA Power
  • Foamed PE Insulation
  • 75 Ohms CCTV Cable
  • PVC- UL Listed,CM Rated
  • RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM





Description:



KT0717 RG59/U CCTV Coaxial Cable 95% CCA Braiding + 2C/18AWG Siamese

RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by Zion communication) is perfect

for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

Zion communication using best raw material and best worker to produce RG59/U to meet high performance in

practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

Zion communication’S price of RG59/U is not high although our quality is really high.





Applications:



Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera





Specifications:





KT0717 RG59/U CCTV Coaxial Cable 95% CCA Braiding + 2C/18AWG Siamese
Construction Parameters:
  Inner Conductor 0.032"/0.81mm/20AWG Bare Copper
  Dielectric 0.144"/3.66±0.05mm      Foamed Polyethylene
  First Shield Nom. 0.161"/4.10mm      Braiding
  Strands 0.005"/0.12mm Copper Clad Aluminum
  % Coverage 95 nom
  Jacket 0.236"/6.00±0.1mm                   PVC (ETL/UL CM)
  Power Wire Conductor 2 - 18 AWG 7×0.0145"/7×0.37mm Copper Clad Aluminum
  Power wire Diameter of insulation 0.075"/1.90mm PVC (ETL/UL CM)
  Power Wire Color Code Red,Black
  Jacket 0.199"/5.05±0.1mm  PVC (ETL/UL CM)
  * 1 Pair of wire twisted
  Application For Use in Intermediate CCTV Run Lengths
  Limited Length Typical run length up to 750 feet

Electrical Characteristics:
  Capacitance 52±1 pF/m 17±0.3 pF/ft
  Impedance 75±3 Ω
  Resistance 35.73 Ohms/KM 11.72 Ohms/KM
  Return loss between 5 and 1000MHz > 22dB
  Velocity of Propagation  0.85
  Shielding Effectiveness(>dB) 70
  Max Operating Voltage(KVMS) 3
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
1 0.45  1.48
10 0.90  2.95
50 1.90  6.23
100 3.20  10.49
200 4.00  13.11
400 4.90  16.07
700 8.60  28.20
900 9.80  32.13
1000 10.70  35.08

Order Informations:
  Marking Zion communication KT0717 RG59/U 95% CCA+2C-18AWG CCA CLASS 2 ETL
XXX RoHS CM 60C XXXFT CAMERA/ZONE A B C D E F 1 2 3 4 5 6 7 8 9
  Inner Package 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
  Delivery time Normally 20-25 days after received the deposit.
  More informations  please contact with us.

Online Service:
  Skype Zion communication3
  ICQ 246632889







Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
