SF/UTP 0.57mm Copper LSZH Jacket Category 6 Ethernet Cable CPR Certified

Basic Information
Place of Origin: China
Brand Name: OEM or HELLOSIGNAL
Certification: CE, RoHS, CPR
Model Number: 7112226
Minimum Order Quantity: 30.5 KM

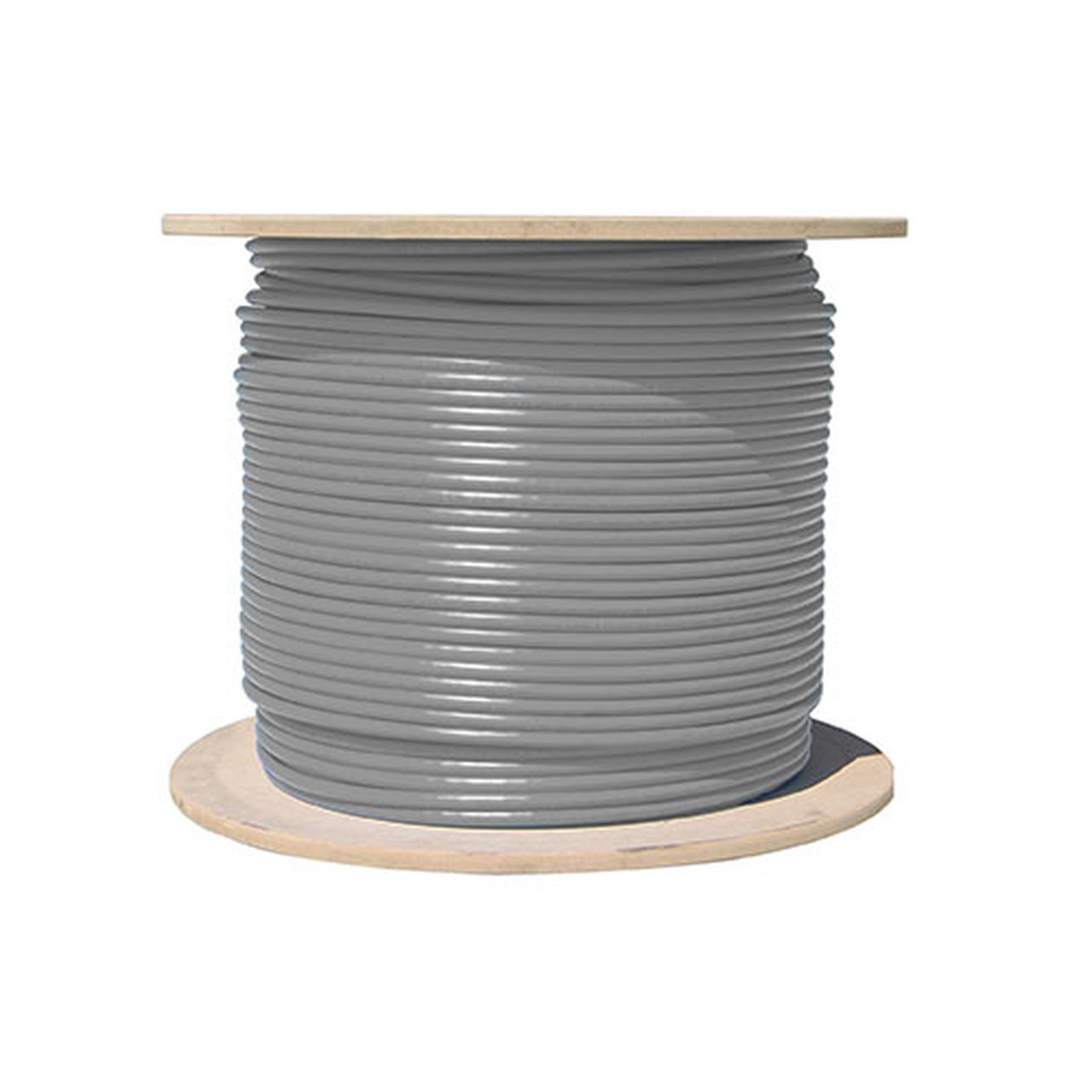

Packaging Details: 305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Solid Bare Copper Insulation: HDPE
Jacket: LSZH Color: Gray/and More
Package: 305M/Pull Box, 500M/Wooden Drum Logo: OEM
Application: Telcommunication, Networking, Telecom/CATV,computer,security Shield: SF/UTP
Product Name: SF/UTP CAT6, CAT 6 250Mhz-500Mhz Pairs: 4 Pairs
High Light:

CPR Certified Category 6 Ethernet Cable

,

SF/UTP Category 6 Ethernet Cable

,

LSZH Jacket Category 6 Ethernet Cable


Product Description

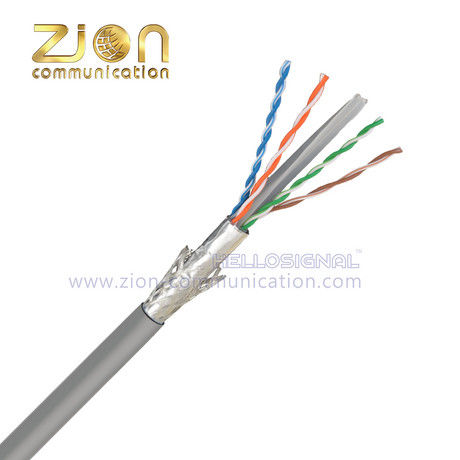

SF/UTP CAT6 0.57mm Copper Conductor LSZH Jacket Category 6 Ethernet Outdoor Cable CE/CPR/Delta NO.7112226

SF/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, indoor LSZH Jacket Network Cable, CPR Certified,7112226





SF/UTP CAT 6 LSZH-Global Market (NO. 7112226)

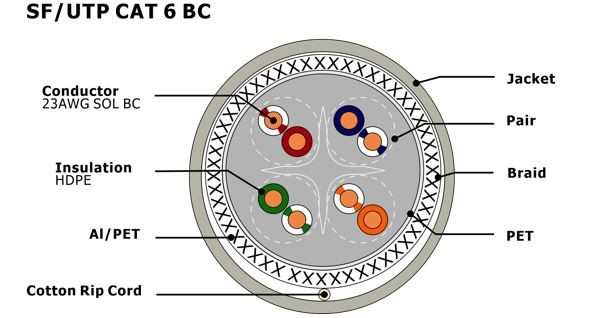

Construction



Conductor: 0.57±0.005mm Solid Bare Copper
Pairs: 4 Pairs
Insulation: 1.18±0.05 mm HDPE
Insulation Colors: Blue-White/Blue, Orange-White/Orange
Green-White/Green, Brown-White/Brown
Cross Section Modified Polyethylene
Shielded 1 PET Foil
Shielded 2 Al/PET Foil, Foil face out
Shielded 3 Al_Mg Braiding
Out Jacket: 7.7±0.3 mm LSZH

※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm



COMPLIANCE ( Reference standard and certificates)

· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399



 Electrical Characteristics

DC Resistance <9.38 Ohms/100m @20℃
DC Resistance unbalance 5% @ 20℃
Mutual Capacitance 5.6 nF/100m
Characteristic Impedance 1 - 100 MHz: 100±15 Ohms
100 - 250 MHz: 100±20 Ohms
Max Frequency 250MHz
Capacitance Unbalance 330 pF/100m
NVP 63%
Delay Skew ≤ 45ns/100m



 PHYSICAL PROPERTIES

Pulling Tension(Max) ≥13.5Mpa
Bend Radius(Min) 8×OD of Jacket
Operating Temperature -20 to 80 ℃ (-4 to 167℉)



Performance Characteristics

Frequency RL (Min.) Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT (Min.) PS NEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0 2.0 570.0 45.0 74.0 72.0 67.8 64.8
4 23.0 3.8 552.0 45.0 65.0 63.0 55.7 52.7
10 25.0 6.0 545.0 45.0 59.0 57.0 47.8 44.8
16 25.0 7.6 543.0 45.0 56.0 54.0 43.7 40.7
20 25.0 8.5 542.0 45.0 55.0 53.0 41.7 38.7
31.25 23.6 10.7 540.0 45.0 52.0 50.0 37.9 34.9
62.5 21.5 15.4 539.0 45.0 47.0 45.0 31.8 28.8
100 20.1 19.8 538.0 45.0 44.3 42.3 27.8 24.8
200 18.0 29.0 537.0 45.0 39.7 37.7 21.7 18.7
250 17.3 32.8 536.0 45.0 38.0 36.0 19.8 16.8

 ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.



Order Information

Marking HELLOSIGNAL NO.7112226 SF/UTP CAT6 4PR 0.57mm Copper LSZH Jacket ...305M(1000FT) (or Per customer's request)
Inner Package 305M/Wooden Drum, 500M/Wooden Spool (or Per customer's request)
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM



Information on CAT6 Introduction



CAT 6 cable which is named Category 6 cable, used for the cabling infrastructure of Internet and Ethernet.

Cat 6 has to meet more stringent specifications for crosstalk and system noise than Cat 5e.

The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.

For more about its key features and applications, please check our complete guide to Cat 6 cable.



Applications

● Cat6 can support 10 Gbps, the cabling can support frequencies of up to 250 MHz

● 10GBASE-T/POE/VOIP

● Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones

● Reference Standard and Certificates

● ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399

● UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS



Connectors

● RJ-45 is the standard connector used with a Cat6 cable assembly.

   RJ45 is the universal connector used with 99% of network devices.



Professional SF/UTP CAT6 LSZH Lan cable manufacturer from China

● Zion Communication is one of the top manufacturers and exporters of SF/utp cat6 LSZH jacket

● Extensive experience in manufacturing for export and problem-solving of SF/utp cat6 LSZH jacket

● Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and services, continue to create maximum value for customers!

● Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best SF/utp cat6 LSZH jacket to our customers.

● Our management and international sales teams are committed to our customers' utmost satisfaction.



Competitive Advantage:



1,  Quality Control: from raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each workstation

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery





Packing Design

SF/UTP 0.57mm Copper LSZH Jacket Category 6 Ethernet Cable CPR Certified 0
