| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Flexible Control Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Extra Fine Stranded Bare Copper | Insulation: | Polyurethane |
|---|---|---|---|
| Jacket: | Polyurethane | Color: | Black |
| High Light: | power control cable,control cable and power cable |
||
https://www.zion-communication.com/Power-and-Control-Cables-products-catalog.html
| PUR S 17/PUR S 27 | |||||||
 |
|||||||
| ▉ Application | |||||||

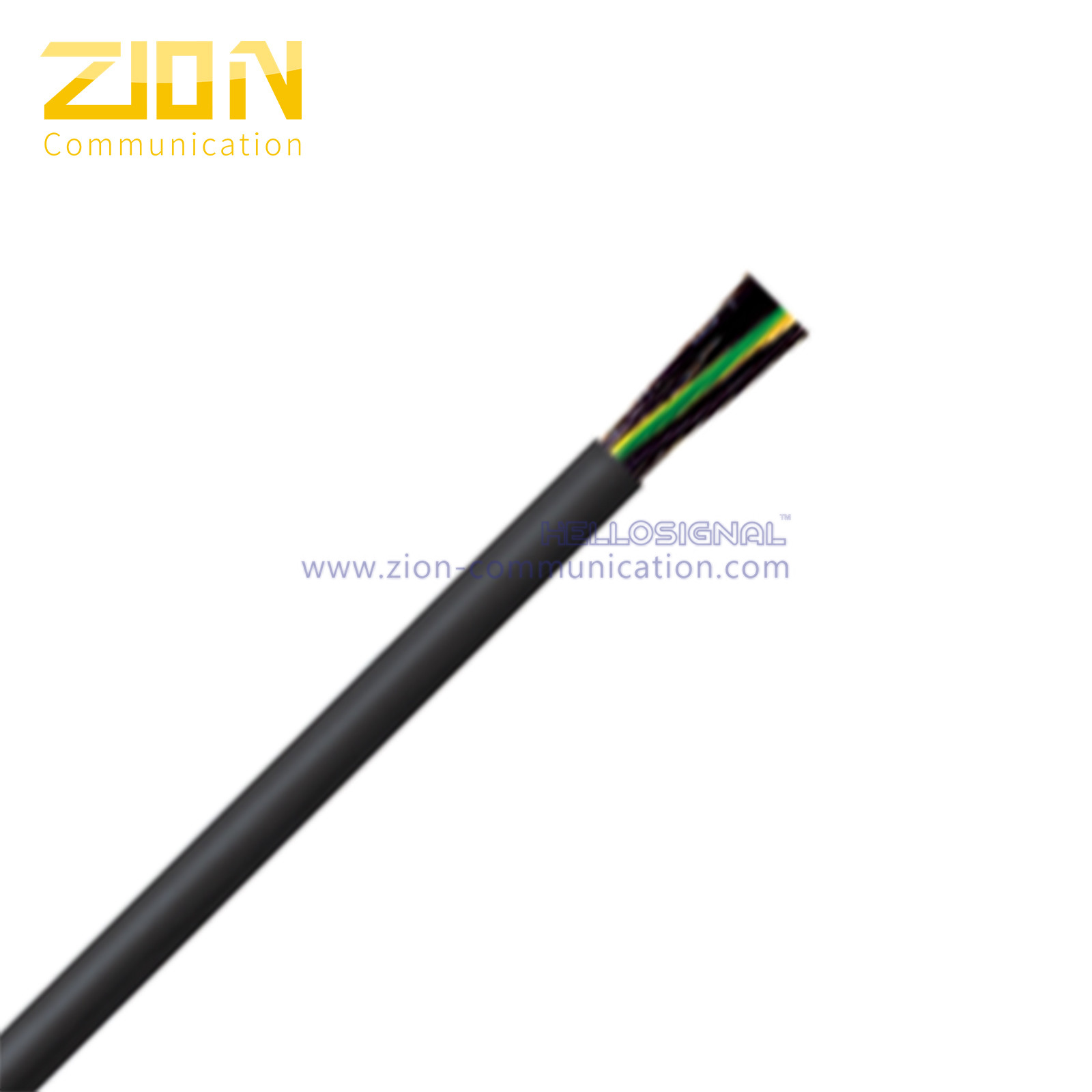

| PUR S 17/PUR S 27 is a highly flexible PUR-insulated and PUR-jacketed control cable. It has excellent oil and abrasion resistance and cold-temperature performance. |
|||||||
| ▉ Recommended Applications | |||||||
| Forestry equipment; farming equipment; utility trucks; cold-temperature applications where abrasion resistance and flexibility are required | |||||||
| ▉ Construction | |||||||
| Conductors: Extra fine stranded bare copper | |||||||
| Insulation: Polyurethane | |||||||
| Jacket: Polyurethane; black | |||||||
| ▉ Application Advantage | |||||||
| • Very good cold-temperature performance • Excellent oil and abrasion resistance • Halogen-free • Cold climate/rugged applications |
|||||||
| ▉ Technical data | |||||||
| Minimum Bend Radius | for installation : 6 x cable diameter | ||||||
| Temperature Range | 30°C to +80°C |
||||||
| Nominal Voltage | 300/500V | ||||||
| Test Voltage | 3000V | ||||||
| Conductor Stranding | Class 6 fine wire | ||||||
| Color Code | HELLOSIGNAL® PUR S 17 : Chart 9, page 675 | ||||||
| HELLOSIGNAL® PUR S 27 : Numbered conductors | |||||||
| Approvals | CE & RoHS | ||||||
| ▉ PUR S 17 Product List | |||||||
| Item No. | Number of Conductors |
Nominal Outer(in) | Copper.weight (lbs/mft) | Approx.weight (lbs/mft) | |||
| 20 AWG (0.50 mm²) | |||||||
| 7142700 | 2 | 0.209 | 7 | 22 | |||
| 7142701 | 12 | 0.378 | 40 | 40 | |||
| 19 AWG (0.75 mm²) | |||||||
| 7141810 | 2 | 0.228 | 13 | 11 | |||
| 7141811 | 3 | 0.236 | 19 | 15 | |||
| 7141812 | 4 | 0.264 | 25 | 22 | |||
| 7141813 | 12 | 0.417 | 75 | 64 | |||
| 7141820 | 15 | 0.476 | 94 | 73 | |||
| 7141821 | 18 | 0.500 | 113 | 88 | |||
| 7141822 | 25 | 0.606 | 156 | 121 | |||
| 12 AWG (4.00 mm²) | |||||||
| 7141825 | 2 | 0.280 | 18 | 20 | |||
| 7141826 | 3 | 0.287 | 27 | 31 | |||
| 7141830 | 12 | 0.531 | 109 | 117 | |||
| ▉ PUR S 27 Product List | |||||||
| Item No. | Number of Conductors |
Nominal Outer(in) | Copper.weight (lbs/mft) | Approx.weight (lbs/mft) | |||
| 20 AWG (0.50 mm²) | |||||||
| 7141840 | 3 | 0.217 | 10 | 11 | |||
| 7141841 | 4 | 0.240 | 13 | 13 | |||
| 19 AWG (0.75 mm²) | |||||||
| 7141845 | 3 | 0.236 | 13 | 15 | |||
| 7141846 | 4 | 0.264 | 25 | 22 | |||
| 7141850 | 5 | 0.287 | 31 | 26 | |||
| 7141851 | 7 | 0.339 | 44 | 33 | |||
| 7141852 | 12 | 0.417 | 75 | 58 | |||
| 7141860 | 25 | 0.606 | 156 | 121 | |||
| 16AWG (1.50 mm²) | |||||||
| 7141865 | 4 | 0.319 | 36 | 40 | |||
| ▉ Order Informations | |||||||
| Marking | HELLOSIGNAL PUR S 17/PUR S 27 XXXFT/M | ||||||
| Package | 100M/Reel, 300M/Wooden Spool | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
