| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Sensor Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Stranded Bare Copper Wire | Insulation: | SR-PVC |
|---|---|---|---|
| Shield: | AL/Mylar Screen And TC Braid | Jacket: | See Attached List |
| Color: | Gray | ||
| High Light: | power control cable,control cable and power cable |
||

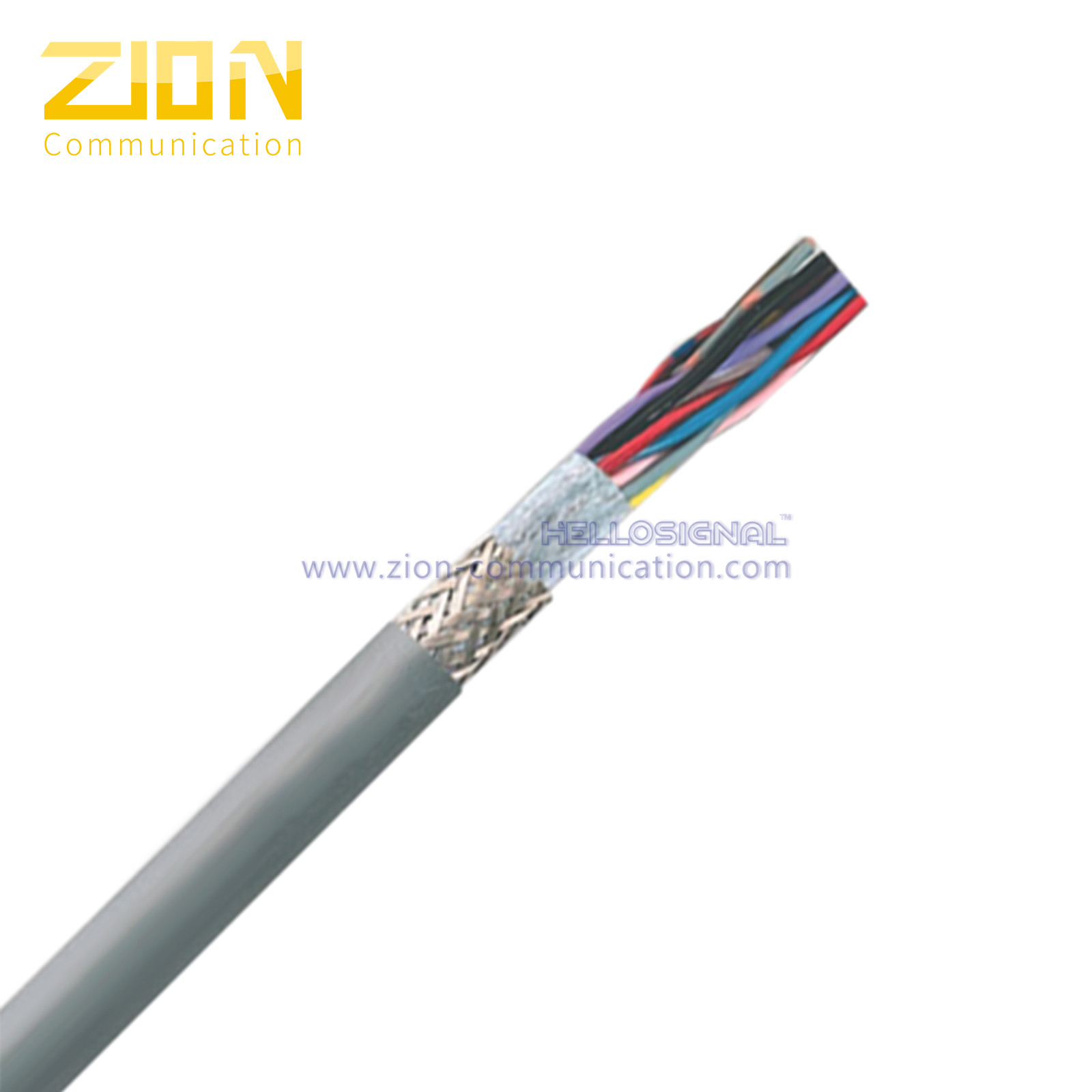

PUR Sensor & Actuator Shielded Power And Control Cables Stranded Bare Copper Wire
https://www.zion-communication.com/Power-and-Control-Cables-products-catalog.html
| PUR Sensor & Actuator cables Shielded | |||||||
 |
|||||||
| ▉ Application | |||||||
| According to production requsts,Industrial sensor cable assist sensor to monitor processing data.It is first priorities to automatic tests and control,cable used in industrial production, environment protection,resource exploration. Very flexible installation(power chains or moving machine parts). |
|||||||
| ▉ Cable Construction | |||||||
| Conductor:Stranded bare copper wire | |||||||
| Insulation: SR-PVC | |||||||
| Cabling: PET (optional) | |||||||
| Shield:AL/Mylar screen and TC braid | |||||||
| Drain wire:Tinned copper wire | |||||||
| Jacket: PUR | |||||||
| Color: Grey | |||||||
| ▉ Product Feature | |||||||
| Oil resistance,Easy flexible bending | |||||||
| Fire resistance meets IEC60332-1 | |||||||
| Abrasion resistance,Anti-hydrolysis | |||||||

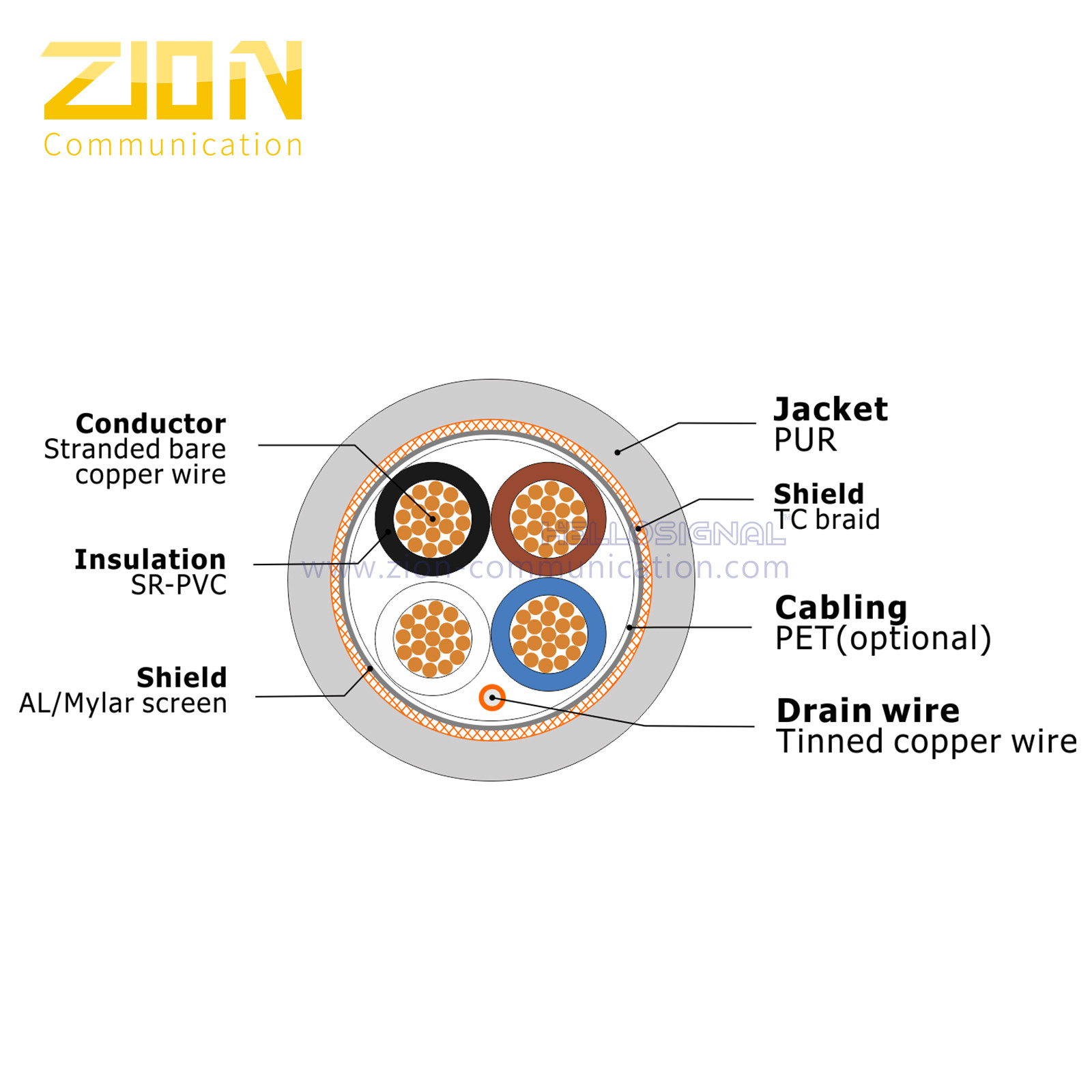

| ▉ Cross Section | |||||||
 |
|||||||
| ▉ Technical data | |||||||
| Temperature range | .-5℃ to 70℃ | ||||||
| Rated voltage | UL/CSA 300V | ||||||
| Bending radius | 15x cable diameter | ||||||
| Test voltage | 1500V 1min,no breakdown | ||||||
| Insulation resistance | 0.25mm²≤80 ohm/km | ||||||
| 0.34mm²≤60 ohm/km | |||||||
| ▉ Product List | |||||||
| Item No. | Spec. | Jacket | Nominal OD(mm) |
Copper.weight approx (kg/km) | Weight approx(kg/km) | ||
| 7140070 | 3*0.14mm² | PUR | 3.1 | 3.7 | |||
| 7140071 | 4*0.14mm² | PUR | 3.7 | 5.0 | |||
| 7140072 | 3*0.25mm² | PUR | 4.6 | 6.9 | 23.5 | ||
| 7140073 | 4*0.25mm² | PUR | 4.9 | 9.3 | 25.0 | ||
| 7140074 | 6*0.25mm² | PUR | 5.3 | 13.8 | |||
| 7140075 | 8*0.25mm² | PUR | 6.2 | 18.5 | |||
| 7140076 | 10*0.25mm² | PUR | 6.5 | 23.1 | |||
| 7140077 | 12*0.25mm² | PUR | 6.6 | 27.8 | |||
| 7140078 | 14*0.25mm² | PUR | 7.4 | 32.4 | |||
| 7140079 | 3*0.34mm² | PUR | 4.5 | 9.1 | 33.0 | ||
| 7140080 | 4*0.34mm² | PUR | 4.9 | 12.1 | 35.0 | ||
| 7140081 | 5*0.34mm² | PUR | 5.3 | 15.1 | 40.0 | ||
| 7140082 | 6*0.34mm² | PUR | 6.2 | 18.2 | |||
| 7140083 | 3*0.50mm² | PUR | 4.8 | 13.9 | |||
| 7140084 | 5*0.50mm² | PUR | 5.6 | 23.1 | |||
| ▉ Order Informations | |||||||
| Marking | HELLOSIGNAL PUR Sensor & Actuator cables Shielded XXXFT/M | ||||||
| Package | 100M/Reel, 300M/Wooden Spool | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
